SB8100CT, SB820CT - SCHOTTKY BARRIERRECTIFIERS

SB8100CT Description

DATA SHEET SEMICONDUCTOR SB820CT~SB8100CT SCHOTTKY BARRIER RECTIFIERS VOLTAGE 20 to 100 Volts CURRENT - 8.0 Ampere .

SB8100CT Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound. Exceeds environmental standards of MILS19500/228 Low power loss, high efficiency. Low forwrd voltge, high current capability High surge capacity. For use in low voltage,hig

SB8100CT Applications

* High temperature soldering : 260OC / 10 seconds at terminals Pb free product at available : 99% Sn above meet RoHS environment substance directive request .419(10.66) .387(9.85) .134(3.40) MIN. .055(1.40) .039(1.00) .039(1.00) .019(0.50) TO-220AB .269(6.85) .226(5.75) .624(15.87) .584(13.93) Un

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB8100CT, SB820CT. Please refer to the document for exact specifications by model.

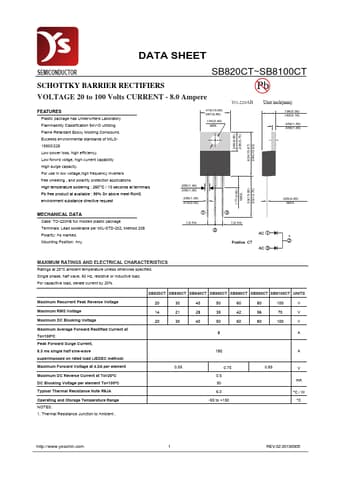

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SB8100CT, SB820CT
Manufacturer
YS
File Size
899.78 KB
Datasheet
SB820CT-YS.pdf
Description
SCHOTTKY BARRIERRECTIFIERS
Note
This datasheet PDF includes multiple part numbers: SB8100CT, SB820CT.
Please refer to the document for exact specifications by model.
