ISO-F2-P1-O1 - Frequency to V/I Signal Transmitter

Product Overview

📥 Download Datasheet

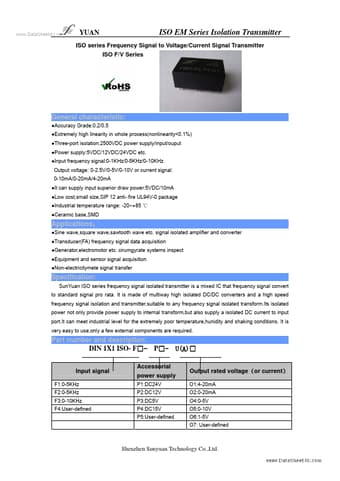

Datasheet preview – ISO-F2-P1-O1

Datasheet Details

Part number ISO-F2-P1-O1
Manufacturer YUAN
File Size 512.52 KB
Description Frequency to V/I Signal Transmitter
Datasheet download datasheet ISO-F2-P1-O1 Datasheet
Additional preview pages of the ISO-F2-P1-O1 datasheet.

Product details

Description

DIN 1X1 ISO- F Input signal F1:0-5KHz F2:0-5KHz F3:0-10KHz F4:User-defined P - U(A) Output rated voltage（or current） O1:4-20mA O2:0-20mA O4:0-5V O5:0-10V O6:1-5V O7: User-defined Accessorial power supply P1:DC24V P2:DC12V P3:DC5V P4:DC15V P5:User-defined Shenzhen Sunyuan Technology Co.,Ltd.www.DataSheet4U.com YUAN ISO EM Series Isolation Transmitter 2500VDC ±10%Vin +300℃ Figure 1 Continue isolation voltage value Power Vin range: Jointing temperature(10sec.) If
