ISO-F3-Px-Ox Frequency to V/I Signal Transmitter

DIN 1X1 ISO- F *Input signal F1:0-5KHz F2:0-5KHz F3:0-10KHz F4:User-defined P *- U(A) * Output rated voltage（or current） O1:4-20mA O2:0-20mA O4:0-5V O5:0-10V O6:1-5V O7: User-defined Accessorial power supply P1:DC24V P2:DC12V P3:DC5V P4:DC15V P5:User-defined Shenzhen Sunyua.

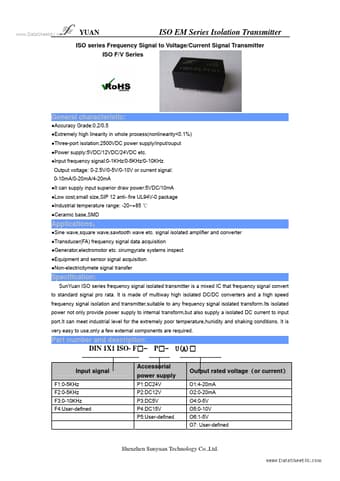

www.DataSheet4U.com YUAN ISO EM Series Isolation Transmitter ISO series Frequency Signal to Voltage/Current Signal Transmitter ISO F/V Series General characteristic: Accuracy Grade:0.2/0.5 Extremely high linearity in whole process(nonlinearity<0.1%) Three-port isolation:2500VDC power supply/input/ouput Power supply:5VDC/12VDC/24VDC etc. Input frequency signal:0-1KHz/0-5KHz/0-10KHz Output voltage: 0-2.5V/0-5V/0-10V or current signal: 0-10mA/0-20mA/4-20mA It can s.
