ISOEM-Ax-Px-Ox Datasheet - YUAN

ISOEM-Ax-Px-Ox Electromagnetic Isolation Transmitter

ISOEM - U(A) * - P * -O * Input rated current U1:0-5V U2:0-10V U3:0-75mV U4:0-2.5V U5:0-±5V U6:0-±10V U7:0-±100V U8:User-defined A1:0-1mA A2:0-10mA A3:0-20mA A4:4-20mA A5:0-±1mA A6:0-±10mA A7:0-±20mA A8: User-defined Accessorial power supply P P1:DC24V P2:DC12V P3: DC5V P4:D.
YUAN www.DataSheet4U.com ISO EM Series Isolation Transmitter ISOEM Series DC Current/Voltage Single/Dual Signal Isolated Amplifier IC (Electromagnetic Isolation) General characteristic: Low cost,small size,SIP 12 anti- fire UL94V-0 package No external component,needn’t “ZERO”and “G.adj” adjustment. Assistant power:5VDC/12VDC/15VDC/24VDC or 0-10mA/0-20mA/4-20mA/0-±10mA/0-±20mA current signal Applications： DC cu.

ISOEM-Ax-Px-Ox Datasheet (478.64 KB)

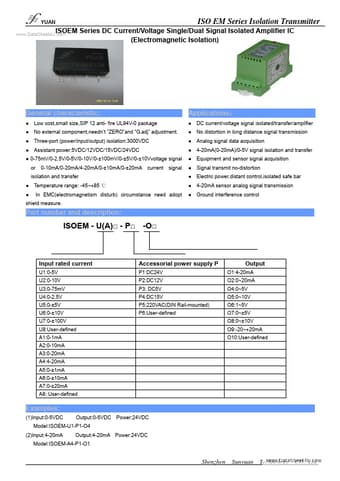

Preview of ISOEM-Ax-Px-Ox PDF
ISOEM-Ax-Px-Ox Datasheet Preview Page 2 ISOEM-Ax-Px-Ox Datasheet Preview Page 3

Datasheet Details

Part number:

ISOEM-Ax-Px-Ox

Manufacturer:

YUAN

File Size:

478.64 KB

Description:

Electromagnetic isolation transmitter.
