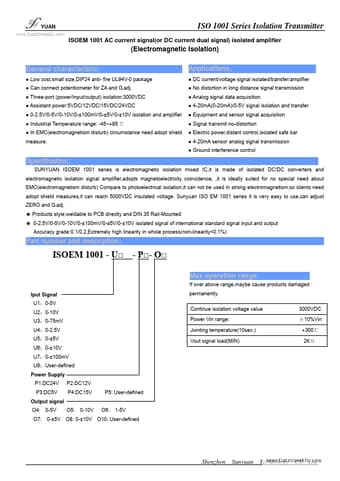

YUAN www.DataSheet4U.com ISO 1001 Series Isolation Transmitter ISOEM 1001 AC current signal(or DC current dual signal) isolated amplifier (Electromagnetic Isolation) General characteristic: Low cost,small size,DIP24 anti- fire UL94V-0 package Can connect potentiometer for ZA and G.adj. Three-port (power/input/output) isolation:3000VDC Assistant power:5VDC/12VDC/15VDC/24VDC 0-2.5V/0-5V/0-10V/0-±100mV/0-±5V/0-±10V isolation and amplifier Industrial Temperature.

ISOEM1001 General Description

ISOEM 1001 - U * - P *- O * Max operation range: If over above range,maybe cause products damaged Iput Signal U1：0-5V U2：0-10V U3：0-75mV U4：0-2.5V U5：0-±5V U6：0-±10V U7：0-±100mV U8：User-defined Power Supply P1:DC24V P3:DC5V Output signal O4: 0-5V O5: 0-10V O6: 1-5V O7: 0-±5V O.
