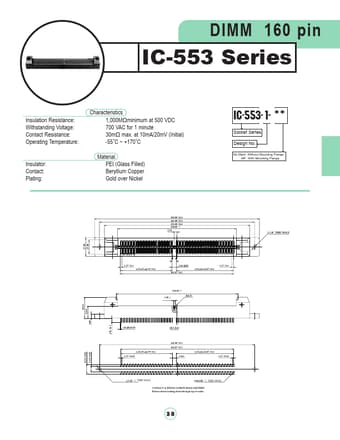

IC-553 160-pin DIMM

DIMM 160 pin IC-553 Series Insulation Resistance: Withstanding Voltage: Contact Resistance: Operating Temperature: Characteristics 1,000M½minimum at 500 VDC 700 VAC for 1 minute 30m½ max. at 10mA/20mV (Initial) -55ûC ~ +170ûC Material PEI (Glass Filled) Beryllium Copper Gold over Nickel IC-553- 1- Socket Series Design No. No Mark: Without Mounting Flange MF: With Mounting Flange Insulator: Contact: Plating: 150.00 ±0.4 141.00 ±0.2 132.00 ±0.4 0 108.00 +0.2 2.54 2-3.20 THRU HOLE 1.
