IC-497 Datasheet - Yamaichi

IC-497 144-Pin DIMM

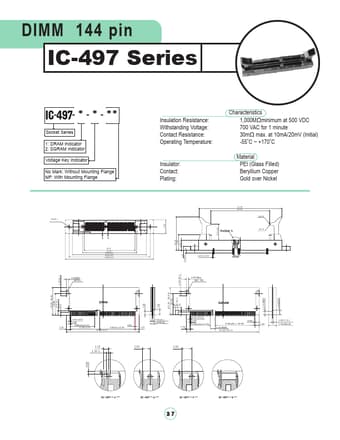

DIMM 144 pin IC-497 Series IC-497- - - Socket Series 1: DRAM Indicator 2: SGRAM Indicator Voltage Key Indicator No Mark: Without Mounting Flange MF: With Mounting Flange Insulation Resistance: Withstanding Voltage: Contact Resistance: Operating Temperature: Characteristics 1,000M½minimum at 500 VDC 700 VAC for 1 minute 30m½ max. at 10mA/20mV (Initial) -55ûC ~ +170ûC Material PEI (Glass Filled) Beryllium Copper Gold over Nickel Insulator: Contact: Plating: (91.50) (65..

IC-497 Datasheet (134.95 KB)
