Datasheet Details
- Part number
- 20SQ045
- Manufacturer
- Yangzhou Yangjie
- File Size
- 164.46 KB
- Datasheet
- 20SQ045-YangzhouYangjie.pdf
- Description
- Schottky Diodes

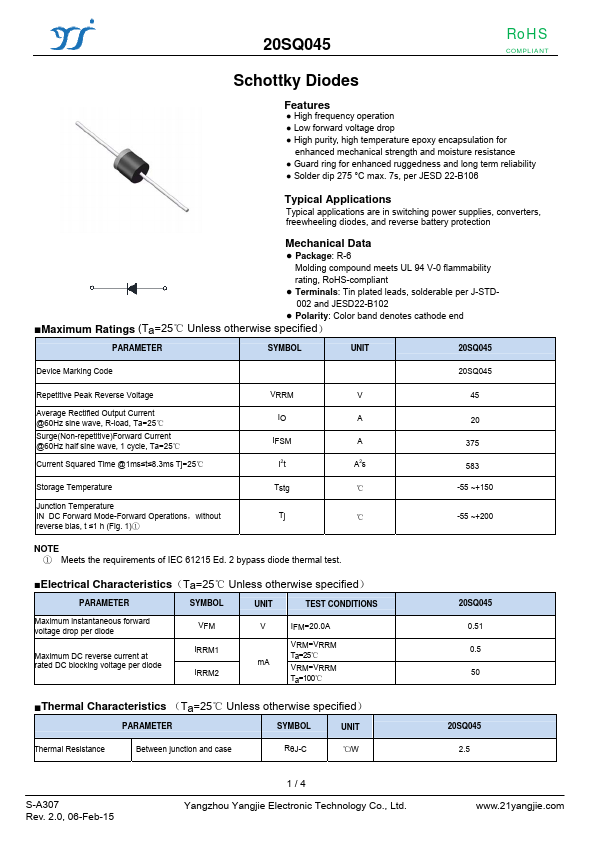

20SQ045 Description
20SQ045 RoHS COMPLIANT Schottky Diodes .
20SQ045 Features
* High frequency operation
* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for
enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability
* Solder dip 275 °C max. 7s, per JESD 22-B106
Typical
20SQ045 Applications
* Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection
Mechanical Data

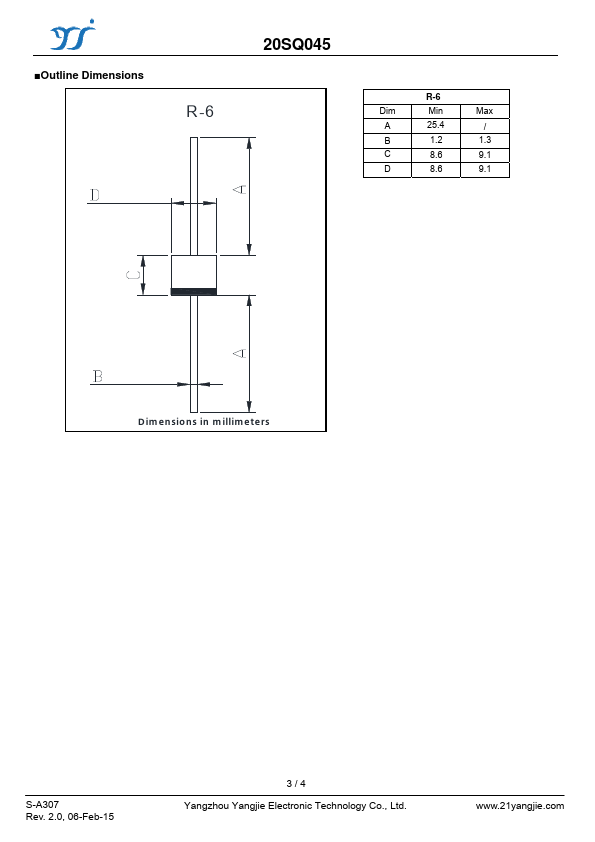

* Package: R-6
Molding compound meets UL 94 V-0 flammability
rating, RoHS-compliant
* Terminals: Tin plated leads, solderable per J-STD-
002 and JESD22-B102
