BR50005

Bridge Rectifiers

BR50005 Features

* UL recognition, file #E230084

* Universal 3-way terminals:snap-on,wire wrap- around,or PCB mounting -

* Glass passivated chip junction

* High surge current capability ~

* Low thermal resistance

* Solder dip 275 °C max. 7 s, per JESD 22-B106 ~ + Typical Applications

BR50005 Datasheet (252.77 KB)

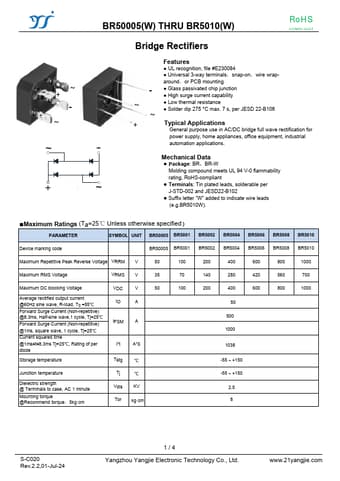

Preview of BR50005 PDF

Datasheet Details

Part number:

BR50005

Manufacturer:

Yangzhou Yangjie

File Size:

252.77 KB

Description:

Bridge rectifiers.
