BR5006, BR50005, Bridge Rectifiers

+~ - ~ ~ + BR50005(W) THRU BR5010(W) RoHS COMPLIANT Bridge Rectifiers .

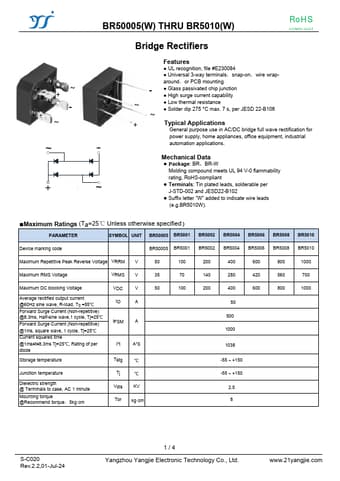

datasheet Preview Page 1 from Datasheet4u.com

BR50005-YangzhouYangjie.pdf

BR5006 Datasheet Preview — This datasheet PDF includes multiple part numbers: BR5006, BR50005. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BR5006, BR50005

Manufacturer:

Yangzhou Yangjie

File Size:

252.77 KB

Description:

Bridge Rectifiers

Note:

This datasheet PDF includes multiple part numbers: BR5006, BR50005.
Please refer to the document for exact specifications by model.

Features

* UL recognition, file #E230084
* Universal 3-way terminals：snap-on，wire wrap- around，or PCB mounting -
* Glass passivated chip junction
* High surge current capability ~
* Low thermal resistance

Applications

* General purpose use in AC/DC bridge full wave rectification for power supply, home appliances, office equipment, industrial - automation applications. Mechanical Data
* Package: BR、BR-W Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant ~
* Terminals: Tin plated l
