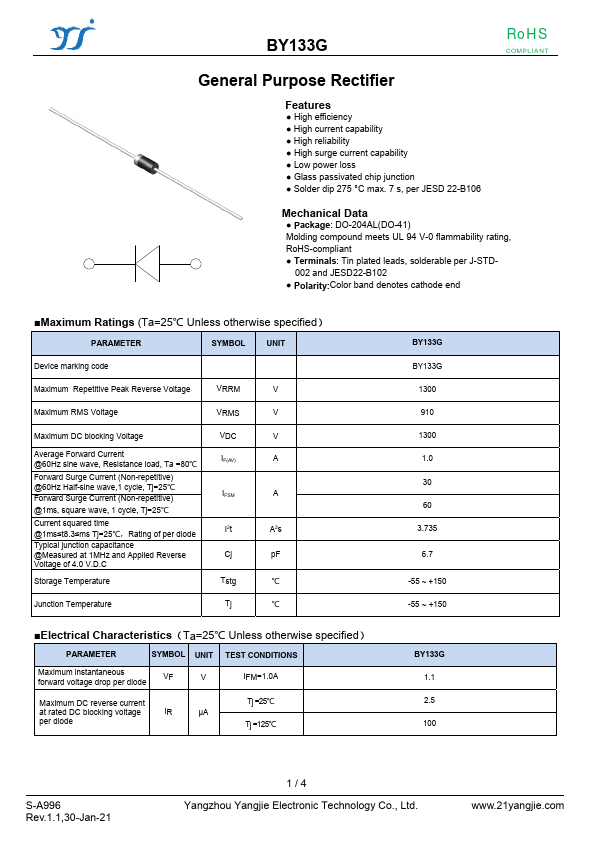

BY133G - General Purpose Rectifier

Datasheet Summary

Features

High efficiency.
High current capability.
High reliability.
High surge current capability.
Low power loss.
Glass passivated chip junction.
Solder dip 275 °C max. 7 s, per JESD 22-B106 Mechanical Data.
Package: DO-204AL(DO-41) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant.
Terminals: Tin plated leads, solderable per J-STD- 002 and JESD22-B102.
Polarity:Color band denotes cathode end.
Maximum Ratings (Ta=25℃ Unless othe.

Yangzhou Yangjie

📥 Download Datasheet

Datasheet Details

Part number	BY133G
Manufacturer	Yangzhou Yangjie
File Size	207.90 KB
Description	General Purpose Rectifier
Datasheet	BY133G Datasheet

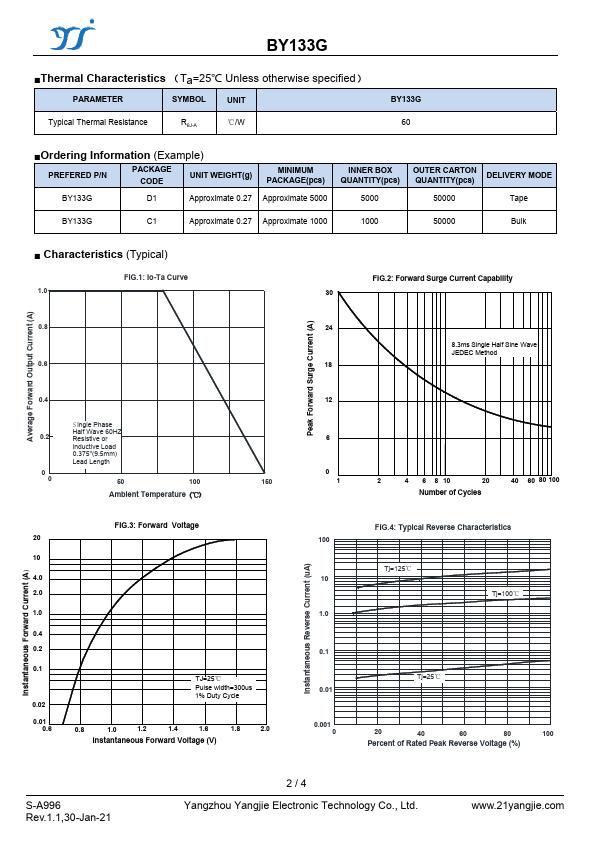

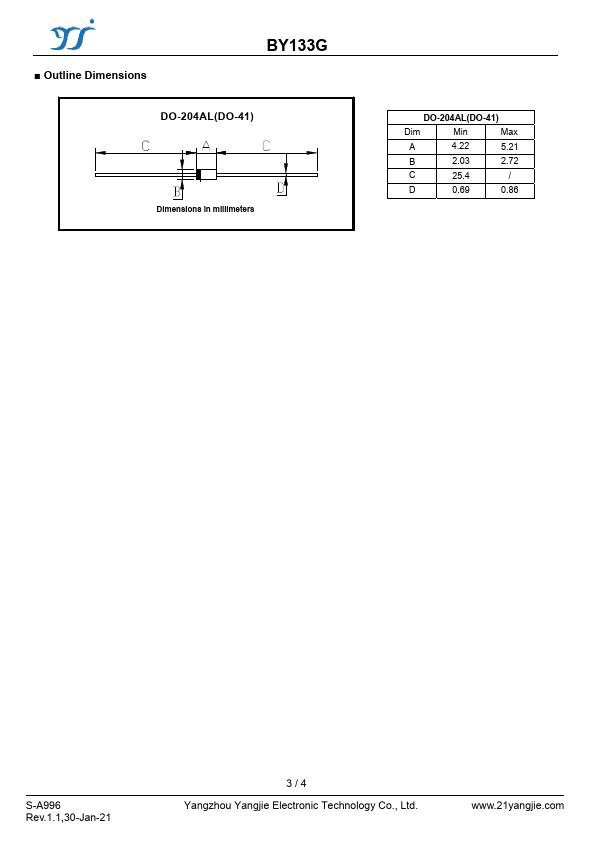

Additional preview pages of the BY133G datasheet.

📁 Similar Datasheet

BY133G - GLASS PASSIVATED JUNCTION RECTIFIER (GOOD-ARK Electronics)
BY133G - GLASS PASSIVATED JUNCTION BY133G SILICON RECTIFIERS (EIC)
BY133G - GLASS PASSIVATED SILICON RECTIFIER (STAR SEA)
BY133G - General Purpose Rectifiers (UPM)
BY133G - GLASS PASSIVATED JUNCTION RECTIFIER (SEMTECH)
BY133G - 1.0 Amp Glass Passivated Rectifier (JGD)
BY133GP - Glass Passivated Rectifier (MCC)
BY133 - PLASTIC SILICON RECTIFIERS (PAN JIT)
BY133 - Sillicon Rectifier (UPM)
BY133 - GENERAL PURPOSE RECTIFIER (MEI SEMI)

Other Datasheets by Yangzhou Yangjie

Full PDF Text Transcription

Click to expand full text

BY133G RoHS COMPLIANT General Purpose Rectifier Features ● High efficiency ● High current capability ● High reliability ● High surge current capability ● Low power loss ● Glass passivated chip junction ● Solder dip 275 °C max.
