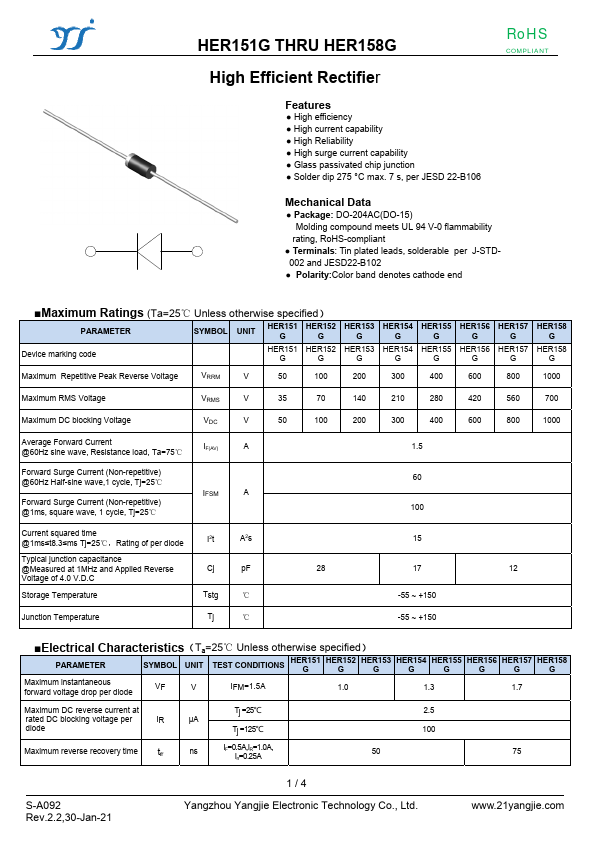

HER154G, HER151G High Efficient Rectifier

HER154G Description

HER151G THRU HER158G RoHS COMPLIANT High Efficient Rectifier .

HER154G Features

* High efficiency
* High current capability
* High Reliability
* High surge current capability
* Glass passivated chip junction
* Solder dip 275 °C max. 7 s, per JESD 22-B106 Mechanical Data
* Package: DO-204AC(DO-15) Molding compound meets UL 94 V-0 flammability rating,

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HER154G, HER151G. Please refer to the document for exact specifications by model.

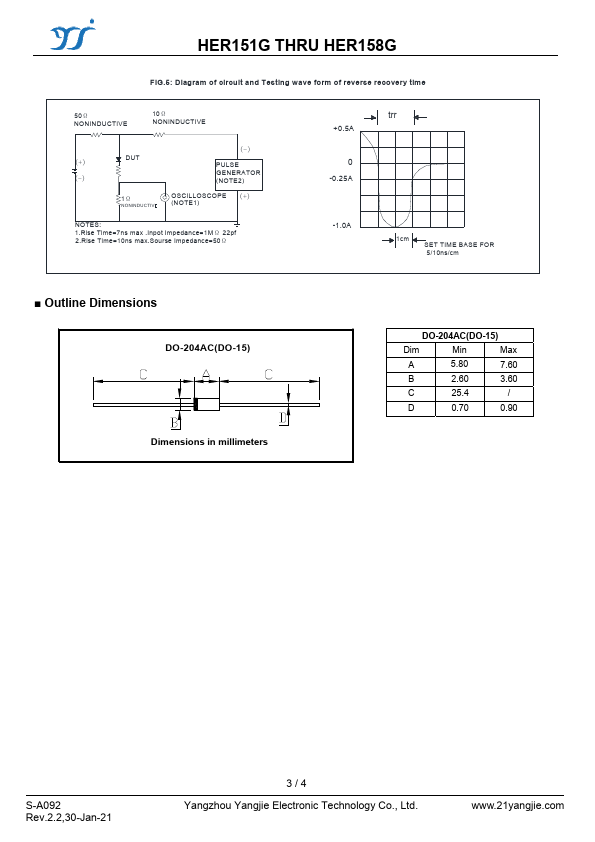

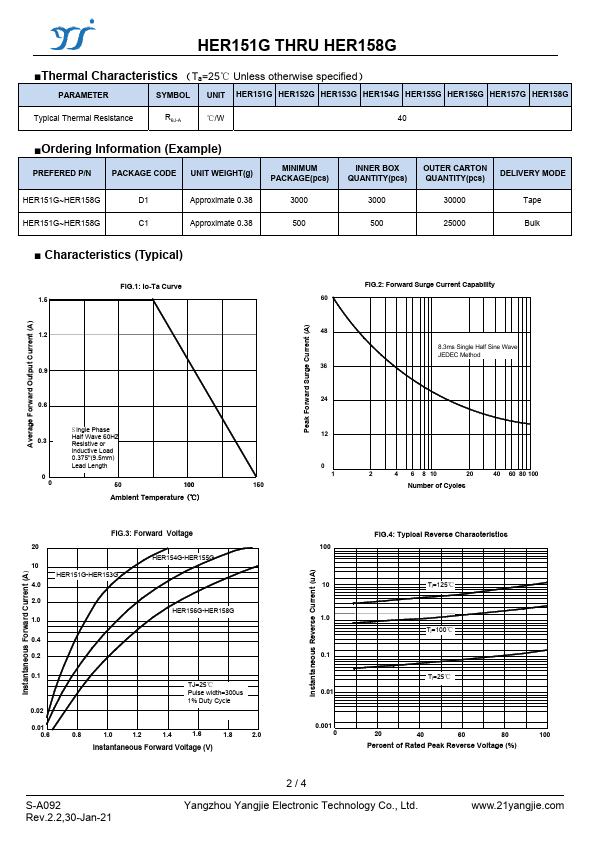

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HER154G, HER151G
Manufacturer
Yangzhou Yangjie
File Size
214.71 KB
Datasheet
HER151G-YangzhouYangjie.pdf
Description
High Efficient Rectifier
Note
This datasheet PDF includes multiple part numbers: HER154G, HER151G.
Please refer to the document for exact specifications by model.
