MUR2020FCT - Ultra-Fast Recovery Diode

MUR2020FCT Description

MUR2020FCT RoHS COMPLIANT Ultra-Fast Recovery Diodes 10A *2 FRED .

MUR2020FCT Features

* Adopt FRED chip
* Low forward Voltage drop
* Fast reverse recovery time
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability Typ

MUR2020FCT Applications

* Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. Mechanical Data
* Package: ITO-220AB Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
* Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B

📥 Download Datasheet

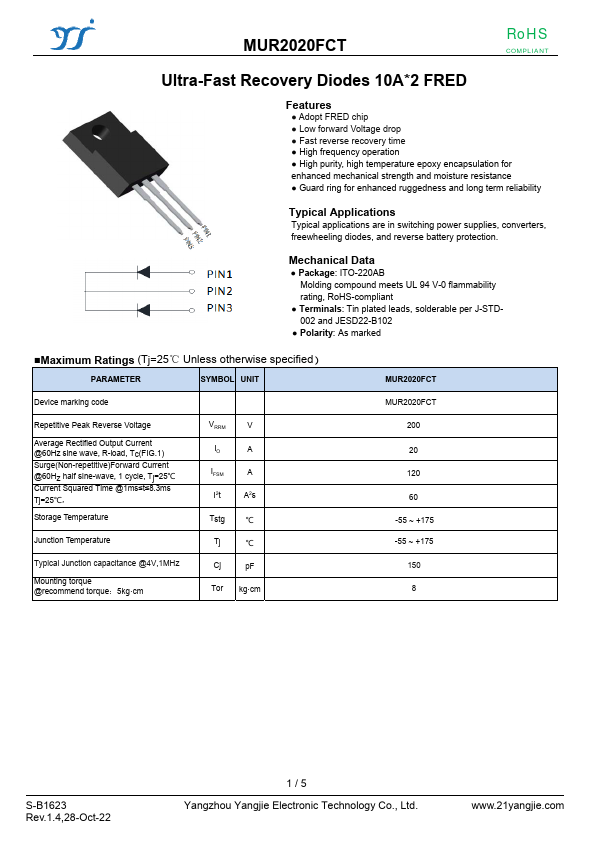

Preview of MUR2020FCT PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MUR2020FCT
Manufacturer
Yangzhou Yangjie
File Size
244.10 KB
Datasheet
MUR2020FCT-YangzhouYangjie.pdf
Description
Ultra-Fast Recovery Diode
