SR150, SR120, Schottky Rectifier

SR120 THRU SR1100 RoHS COMPLIANT Schottky Rectifier * .

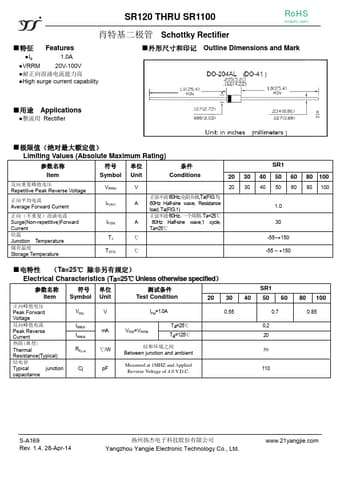

datasheet Preview Page 1 from Datasheet4u.com

SR120-YangzhouYangjie.pdf

SR150 Datasheet Preview — This datasheet PDF includes multiple part numbers: SR150, SR120. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SR150, SR120

Manufacturer:

Yangzhou Yangjie

File Size:

206.53 KB

Description:

Schottky Rectifier

Note:

This datasheet PDF includes multiple part numbers: SR150, SR120.
Please refer to the document for exact specifications by model.

Features

* Io 1.0A
* VRRM 20V-100V
* High surge current capability
* Outline Dimensions and Mark

Applications

* Rectifier
* （） Limiting Values (Absolute Maximum Rating) SR1 Item Repetitive Peak Reverse Voltage Average Forward Current （） Surge(Non-repetitive)Forward Current Junction Temperature Storage Temperature Symbol Unit Conditions 20 30 40 50 60 80 100 VRRM IF(AV) IFSM V 20 30
