FAC1010 Datasheet, Chip, Yantel

FAC1010 Features

• Chip
• High attenuation accuracy
• Small VSWR
• Ceramic chip: 96% alumina
• Laser trimmed
• Low cost-high performance Model No. Description FACXXXX XX

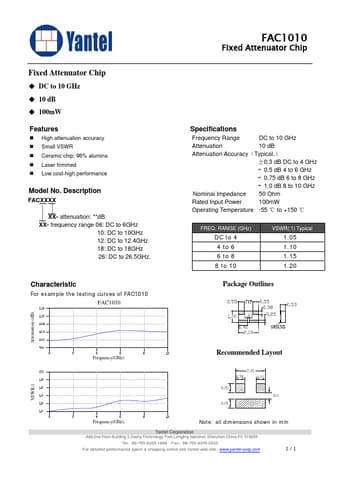

PDF File Details

Part number:

FAC1010

Manufacturer:

Yantel

File Size:

60.78kb

Download:

📄 Datasheet

Description:

Fixed attenuator chip. FACXXXX XX- attenuation:

dB. XX- frequency range 06: DC to 6GHz 10: DC to 10GHz 12: DC to 12.4GHz 18: DC to 18GHz 2
