VK1024B 6 x 4 LCD Driver

VK1024B is a RAM Mapping 6x4 LCD Driver，It can support LCD screens with a maximum of 24 pattern(6SEGx4COM)，it is also supports LCD screens of 2COM or 3COM.Only 3 lines are required to communication interface with the VK1024B , it is used to configure display parameters and transfer display data, and.

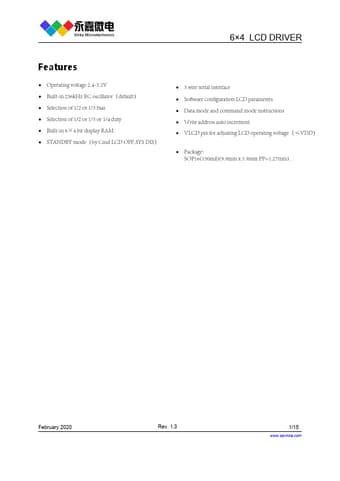

VK1024B Features

* Operating voltage 2.4-5.2V

* Built-in 256kHz RC oscillator（default）

* Selection of 1/2 or 1/3 bias

* Selection of 1/2 or 1/3 or 1/4 duty

* Built-in 6×4 bit display RAM

* STANDBY mode（by Cmd LCD OFF,SYS DIS）

* 3 wire serial interface

VK1024B-Yongjia.pdf
