VK1072C Datasheet, Driver, Yongjia

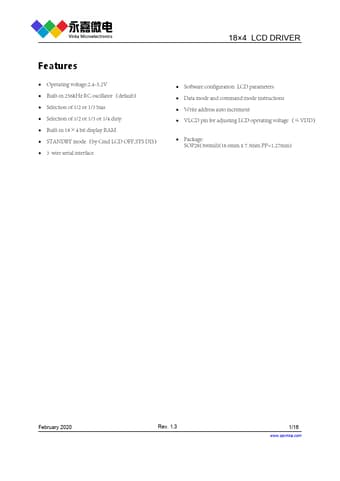

VK1072C Features

• Driver
• Operating voltage:2.4-5.2V
• Built-in 256kHz RC oscillator（default）
• Selection of 1/2 or 1/3 bias
• Selection of 1/2 or 1/3 or 1/4 duty
• Buil

PDF File Details

Part number:

VK1072C

Manufacturer:

Yongjia

File Size:

3.52MB

Download:

📄 Datasheet

Description:

18 x 4 lcd driver. <1) 18×4 LCD DRIVER VK1072C is a RAM Mapping 18x4 LCD Driver，It can support LCD screens with a maximum of 72 pattern(18SEGx4COM
