VK1072D - 18 x 4 LCD Driver

📥 Download Datasheet

Preview of VK1072D PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VK1072D
Manufacturer
Yongjia
File Size
4.51 MB
Datasheet
download datasheet VK1072D-Yongjia.pdf
Description
18 x 4 LCD Driver

VK1072D Product details

Description

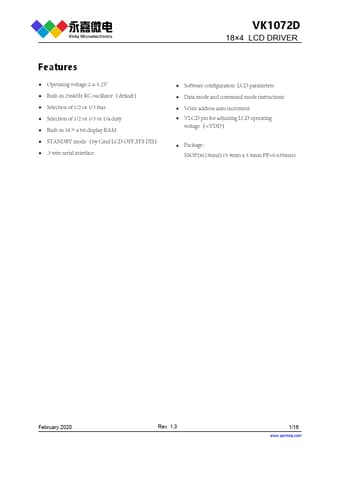

VK1072D 18×4 LCD DRIVER VK1072D is a RAM Mapping 18x4 LCD Driver，It can support LCD screens with a maximum of 72 pattern(18SEGx4COM), it is also supports LCD screens of 2COM or 3COM.Only 3 lines are required to communication interface with the VK1072B,it is used to configure display parameters and transfer display data, and can also enter the standby mode through Power down command.February 2020 Rev.1.3 2/16 www.szvinka.com 2 Pinouts and pin description 2.1 VK1072D SSOP28 Pin Assignment
