ZMD68110S - 100V Dual N-Channel Power MOSFET

ZMD68110S Product details

Description

It combines advanced trench.

Features

  • Advance high cell density Trench technology.
  • Low RDS(ON) to minimize conductive loss.
  • Low Gate Charge for fast switching.
  • Low Thermal resistance.
  • Application.
  • SMPS 2nd Synchronous Rectifier.
  • BLDC Motor driver.
  • Product Summary VDS1 =100V VDS2 =100V RDS(ON) 1=10mΩ RDS(ON) 2=10mΩ ID1 =12A ID2 =12A.
  • Ordering Information: Part NO. Marking Packing Information Basic ordering unit (pcs).
  • Absolute Maximum Ratings（TC =25℃） Parameter Drain-Source Voltage Gate-.

📥 Download Datasheet

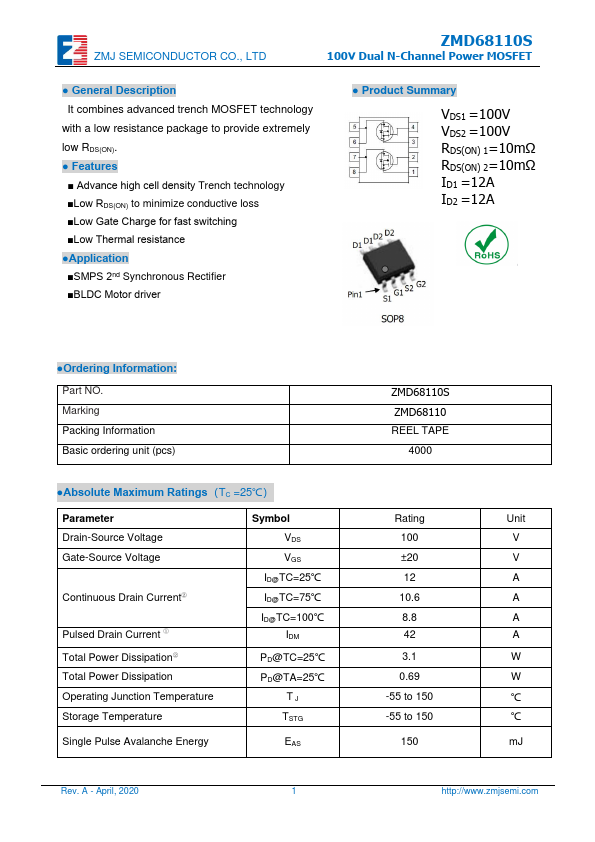

Preview of ZMD68110S PDF

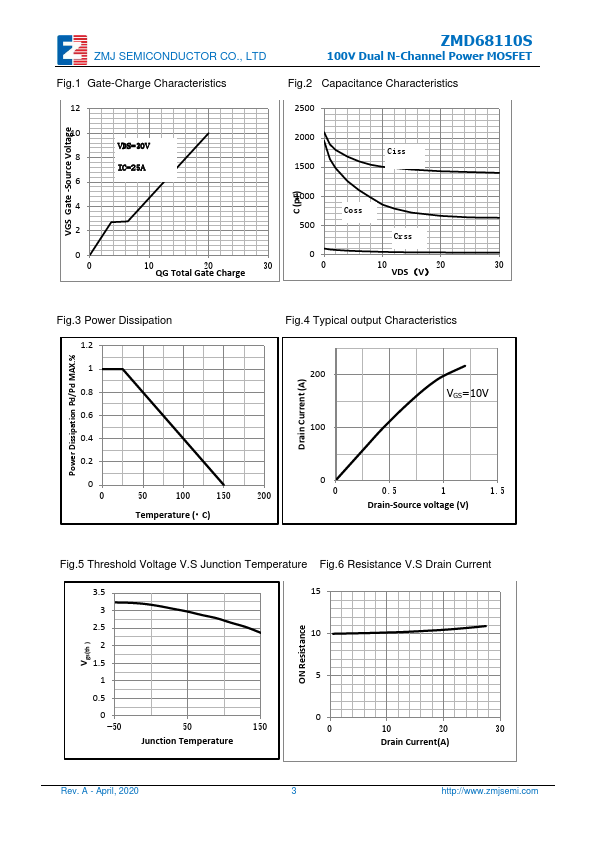

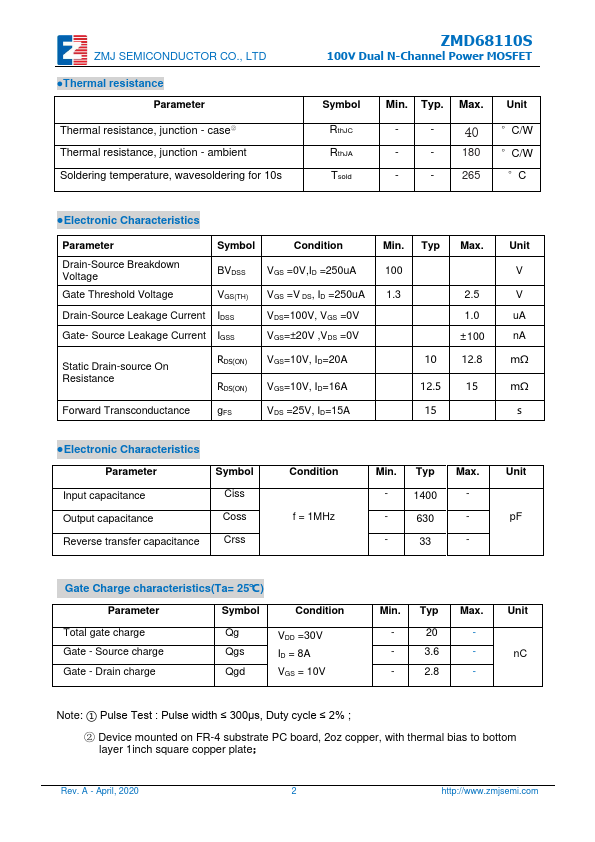

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ZMD68110S
Manufacturer
ZMJ
File Size
408.14 KB
Datasheet
ZMD68110S-ZMJ.pdf
Description
100V Dual N-Channel Power MOSFET
