* Plastic package has Underwriters Laboratory Flammability Classifications 94V-0
* Metal silicon junction, majority carrier conduction
* Guardring for overvoltage protection
* Low power loss, high efficiency
* High current capability, low forward voltage drop
* High surge cap

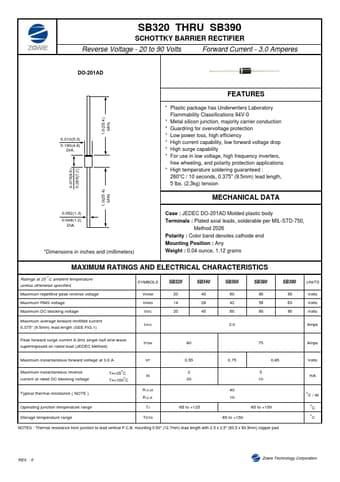

SB340
ZOWIE
47.33 KB
Schottky barrier rectifier.
SB320 THRU SB390
SCHOTTKY BARRIER RECTIFIER
Reverse Voltage - 20 to 90 Volts
Forward Current - 3.0 Amperes
DO-201AD
0.210(5.3)
0.190(4.8) DIA.
1.
