SB390, SB320 SCHOTTKY BARRIER RECTIFIER

SB390 Description

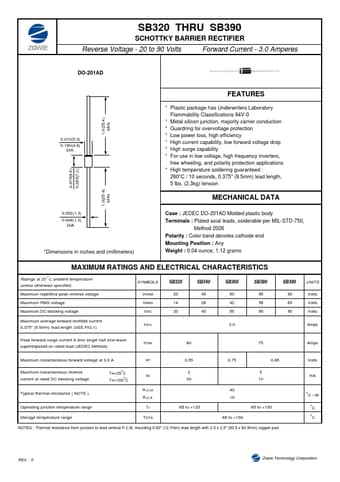

SB320 THRU SB390 SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 90 Volts Forward Current - 3.0 Amperes DO-201AD 0.210(5.3) 0.190(4.8) DIA.1.

SB390 Features

* Plastic package has Underwriters Laboratory Flammability Classifications 94V-0
* Metal silicon junction, majority carrier conduction
* Guardring for overvoltage protection
* Low power loss, high efficiency
* High current capability, low forward voltage drop
* High surge cap

SB390 Applications

* High temperature soldering guaranteed : 260oC / 10 seconds, 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension MECHANICAL DATA 0.375(9.5) 0.285(7.2) 1.0(25.4) MIN. 0.052(1.3) 0.048(1.2) DIA.
* Dimensions in inches and (millimeters) Case : JEDEC DO-201AD Molded plastic body Terminals : Pl
