SB360, SB320, SCHOTTKY BARRIER RECTIFIER

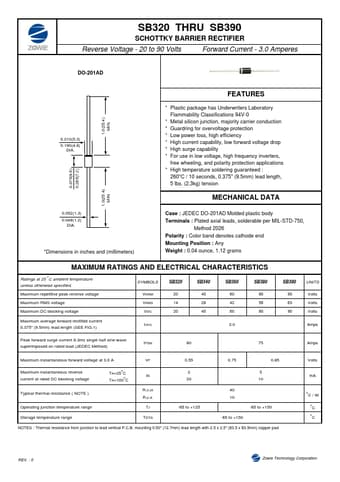

SB320 THRU SB390 SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 90 Volts Forward Current - 3.0 Amperes DO-201AD 0.210(5.3) 0.190(4.8) DIA.1.

datasheet Preview Page 1 from Datasheet4u.com

SB320-ZOWIE.pdf

SB360 Datasheet Preview — This datasheet PDF includes multiple part numbers: SB360, SB320. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SB360, SB320

Manufacturer:

ZOWIE

File Size:

47.33 KB

Description:

SCHOTTKY BARRIER RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: SB360, SB320.
Please refer to the document for exact specifications by model.

Features

* Plastic package has Underwriters Laboratory Flammability Classifications 94V-0
* Metal silicon junction, majority carrier conduction
* Guardring for overvoltage protection
* Low power loss, high efficiency
* High current capability, low forward voltage drop
* High surge cap

Applications

* High temperature soldering guaranteed : 260oC / 10 seconds, 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension MECHANICAL DATA 0.375(9.5) 0.285(7.2) 1.0(25.4) MIN. 0.052(1.3) 0.048(1.2) DIA.
* Dimensions in inches and (millimeters) Case : JEDEC DO-201AD Molded plastic body Terminals : Pl
