ZL40120 Datasheet, Amplifier, Zarlink Semiconductor Inc

ZL40120 Features

  • Amplifier
  • 280MHz small signal bandwidth 1100V/µs slew rate 3.3mA/channel static supply current 60Mhz gain flatness to +/- 0.1dB 14 pin SOIC Order

PDF File Details

Part number:

ZL40120

Manufacturer:

Zarlink Semiconductor Inc

File Size:

298.29kb

Download:

📄 Datasheet

Description:

Low power/ current feedback quad operational amplifier. The ZL40120 is a low power, quad, current feedback operational amplifier offering high performance at a low cost. The device provides

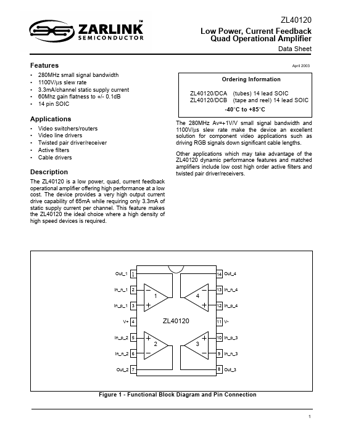

Datasheet Preview: ZL40120 📥 Download PDF (298.29kb)
Page 2 of ZL40120 Page 3 of ZL40120

ZL40120 Application

  • Applications such as driving RGB signals down significant cable lengths. Other applications which may take advantage of the ZL40120 dynamic performa
