ZL40162, High Output Current High Speed Dual Operational Amplifier

ZL40162 High Output Current High Speed Dual Operational Amplifier Data Sheet .
The ZL40162 is a low cost voltage feedback opamp capable of driving signals to within 1V of the power supply rails.

datasheet Preview Page 1 from Datasheet4u.com

ZL40162_ZarlinkSemiconductorInc.pdf

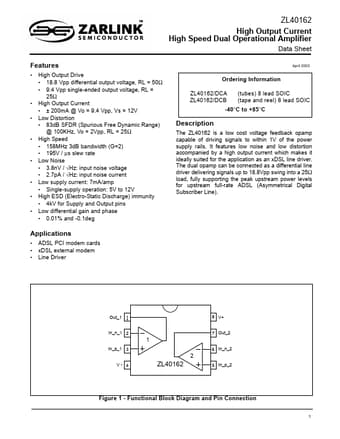

ZL40162 Datasheet Preview — Preview of ZL40162 PDF

Datasheet Details

Part number:

ZL40162

Manufacturer:

Zarlink Semiconductor Inc

File Size:

598.49 KB

Description:

High Output Current High Speed Dual Operational Amplifier

Features

* High Output Drive
* 18.8 Vpp differential output voltage, RL = 50Ω
* 9.4 Vpp single-ended output voltage, RL = 25Ω High Output Current
* ± 200mA @ Vo = 9.4 Vpp, Vs = 12V Low Distortion
* 83dB SFDR (Spurious Free Dynamic Range) @ 100KHz, Vo = 2Vpp, RL = 25Ω H

Applications

* ADSL PCI modem cards xDSL external modem Line Driver Out_1 1 8 V+ 7 Out_2 In_n_1 2 1 In_p_1 3 6 In_n_2 2 V- 4 ZL40162 5 In_p_2 Figure 1 - Functional Block Diagram and Pin Connection 1 ZL40162 Application Notes Data Sheet The ZL40162 is a high speed, high out
