ZL40810

10-GHz Fixed Modulus 8

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Rochester Electronics LLC ZL40810-DCE 10-GHZ FIXED MODULUS DIVIDE BY 8 DigiKey 0 80 units
$3.75

ZL40810 Datasheet (574.35 KB)

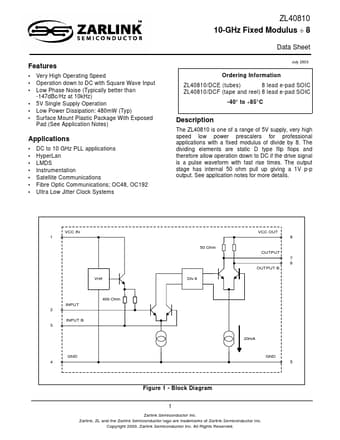

Preview of ZL40810 PDF

Datasheet Details

Part number:

ZL40810

Manufacturer:

Zarlink Semiconductor Inc

File Size:

574.35 KB

Description:

10-ghz fixed modulus 8.

ZL40810 Features

* Very High Operating Speed Operation down to DC with Square Wave Input Low Phase Noise (Typically better than -147dBc/Hz at 10kHz) 5V Single Supply Operation Low Power Dissipation: 480mW (Typ) Surface Mount Plastic Package With Exposed Pad (

ZL40810 General Description

The ZL40810 is one of a range of 5V supply, very high speed low power prescalers for professional applications with a fixed modulus of divide by 8. The dividing elements are static D type flip flops and therefore allow operation down to DC if the drive signal is a pulse waveform with fast rise times.
