ZL40814 Datasheet, Dividers, Zarlink Semiconductor

ZL40814 Features

  • Dividers
  • Very High Operating Speed Low Phase Noise (Typically better than -146dBc/Hz at 10kHz offset) 5V Single Supply Operation Low Power Dissi

PDF File Details

Part number:

ZL40814

Manufacturer:

Zarlink Semiconductor

File Size:

369.12kb

Download:

📄 Datasheet

Description:

(zl40813 - zl40818) 13.5ghz fixed modulus dividers. The ZL40813, 14 and 18 are 5V supply, very high speed low power prescalers for professional applications with a fixed modulus of 8, 1

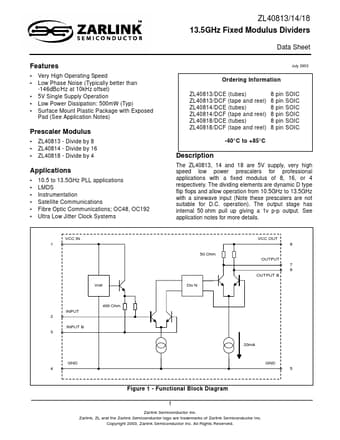

Datasheet Preview: ZL40814 📥 Download PDF (369.12kb)
Page 2 of ZL40814 Page 3 of ZL40814

ZL40814 Application

  • Applications with a fixed modulus of 8, 16, or 4 respectively. The dividing elements are dynamic D type flip flops and allow operation from 10.5GHz
