ZL40818 Datasheet, Dividers, Zarlink Semiconductor

ZL40818 Features

• Dividers
• Very High Operating Speed Low Phase Noise (Typically better than -146dBc/Hz at 10kHz offset) 5V Single Supply Operation Low Power Dissi

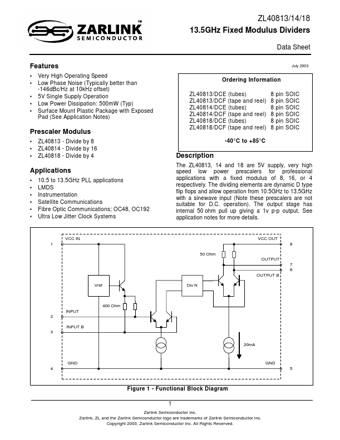

PDF File Details

Part number:

ZL40818

Manufacturer:

Zarlink Semiconductor

File Size:

369.12kb

Download:

📄 Datasheet

Description:

(zl40813 - zl40818) 13.5ghz fixed modulus dividers. The ZL40813, 14 and 18 are 5V supply, very high speed low power prescalers for professional applications with a fixed modulus of 8, 1

ZL40818 Application

• Applications with a fixed modulus of 8, 16, or 4 respectively. The dividing elements are dynamic D type flip flops and allow operation from 10.5GHz

TAGS

ZL40818

Zarlink Semiconductor
