ZL40813

(ZL40813 - ZL40818) 13.5GHz Fixed Modulus Dividers

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Rochester Electronics LLC ZL40813-DCE ZARLINK ANALOG CIRCUIT 1 FUNC DigiKey 0 56 units
$5.42

ZL40813 Datasheet (369.12 KB)

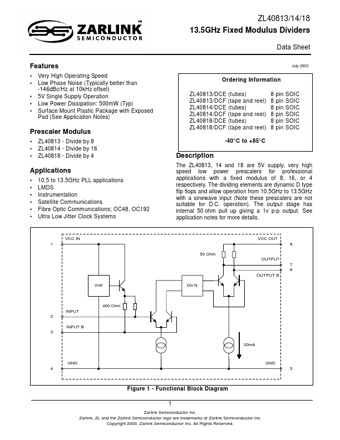

Preview of ZL40813 PDF

Datasheet Details

Part number:

ZL40813

Manufacturer:

Zarlink Semiconductor

File Size:

369.12 KB

Description:

(zl40813 - zl40818) 13.5ghz fixed modulus dividers.

ZL40813 Features

* Very High Operating Speed Low Phase Noise (Typically better than -146dBc/Hz at 10kHz offset) 5V Single Supply Operation Low Power Dissipation: 500mW (Typ) Surface Mount Plastic Package with Exposed Pad (See Application Notes) Ordering Information ZL4

ZL40813 General Description

The ZL40813, 14 and 18 are 5V supply, very high speed low power prescalers for professional applications with a fixed modulus of 8, 16, or 4 respectively. The dividing elements are dynamic D type flip flops and allow operation from 10.5GHz to 13.5GHz with a sinewave input (Note these prescalers are .
