ZL40812 - 10GHz Fixed Modulus / 16

Product Overview

Zarlink Semiconductor

Datasheet Details

Part number	ZL40812
Manufacturer	Zarlink Semiconductor
File Size	550.95 KB
Description	10GHz Fixed Modulus / 16
Datasheet	ZL40812 Datasheet

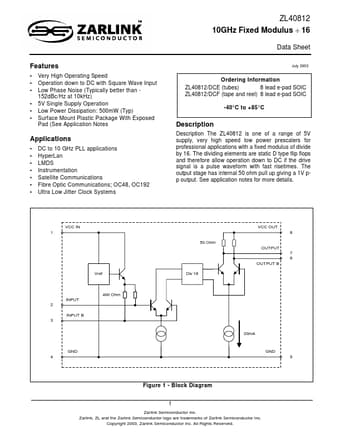

Additional preview pages of the ZL40812 datasheet.

Product details

Description

Description The ZL40812 is one of a range of 5V supply, very high speed low power prescalers for professional applications with a fixed modulus of divide by 16.

Features

Very High Operating Speed Operation down to DC with Square Wave Input Low Phase Noise (Typically better than 152dBc/Hz at 10kHz) 5V Single Supply Operation Low Power Dissipation: 500mW (Typ) Surface Mount Plastic Package With Exposed Pad (See.
