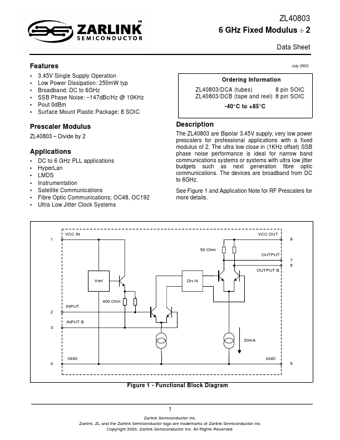

ZL40803 Datasheet, 2, Zarlink Semiconductor

ZL40803 Features

• 2
• 3.45V Single Supply Operation Low Power Dissipation: 250mW typ Broadband: DC to 6GHz SSB Phase Noise:
    –147dBc

PDF File Details

Part number:

ZL40803

Manufacturer:

Zarlink Semiconductor

File Size:

427.31kb

Download:

📄 Datasheet

Description:

6 ghz fixed modulus devide 2. The ZL40803 are Bipolar 3.45V supply, very low power prescalers for professional applications with a fixed modulus of 2. The ultra lo

ZL40803 Application

• Applications with a fixed modulus of 2. The ultra low close in (1KHz offset) SSB phase noise performance is ideal for narrow band communications sys
