NJ88C33 Frequency Synthesiser

8 9 10 11 12 13 FI GND2 FVN GND1 PD C 14 LD OPERATING RANGE Test conditions (unless otherwise stated): PLL locked, RI = 10MHz Characteristic Supply voltage Ambient temperature Supply current Single modulus Symbol VDD Tamb IDD IDD 2.5 -40 Value Min. Typ. Max. 5 5.5 +85 3.0 V °C mA FI = 50MHz, VF.

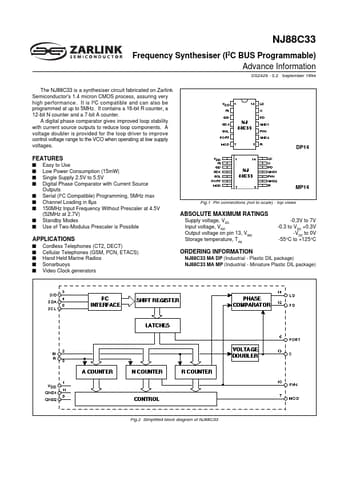

www.DataSheet4U.com NJ88C33 Frequency Synthesiser (I2C BUS Programmable) Advance Information DS2429 - 3.2 September 1994 The NJ88C33 is a synthesiser circuit fabricated on Zarlink Semiconductor's 1.4 micron CMOS process, assuring very high performance. It is I2C compatible and can also be programmed at up to 5MHz. It contains a 16-bit R counter, a 12-bit N counter and a 7-bit A counter. A digital phase comparator gives improved loop stability with current source outputs to reduce loop componen.

NJ88C33 Features

* s s s s s s s s s Easy to Use Low Power Consumption (15mW) Single Supply 2.5V to 5.5V Digital Phase Comparator with Current Source Outputs Serial (I2C Compatible) Programming, 5MHz max Channel Loading in 8µs 150MHz Input Frequency Without Prescaler at 4.5V (52MHz at 2.7V) Standby Modes Use of Two-Mo
