NWK914D

PHY/PMD High Speed Copper Media Transceiver

NWK914D Features

* s Compatible with IEEE-802.3 Standards s Operates over 100 Meters of STP and Category 5 UTP cable s Five Bit TTL Level Symbol Interface s Integrated Clock and Data Recovery s Supports Full-duplex Operation s Integral 10 Mb/s Buffer for Dual 10 Mb/s & 100 Mb/s Applications s Adaptive Equalization s 2

NWK914D General Description

The functional blocks within the device are shown in Fig. 3. These are described below:NRZ to MLT3 Encoder The serial data from the shifter then passes through an encoder which converts the NRZI binary data into the three level MLT-3 format for transmission by the 'TXO' outputs. Transmit Line Driver.

NWK914D Datasheet (173.94 KB)

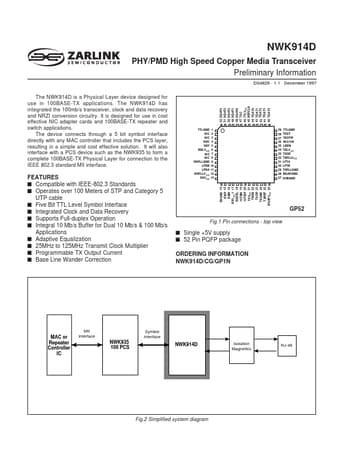

Preview of NWK914D PDF

Datasheet Details

Part number:

NWK914D

Manufacturer:

Zarlink Semiconductor

File Size:

173.94 KB

Description:

Phy/pmd high speed copper media transceiver.
www.DataSheet4U.com NWK914D NWK914D PHY/PMD High Speed Copper Media Transceiver Preliminary Information DS4829 - 1.1 December 1997 The NWK914D is a.
