Part number:
ZVP1320A
Manufacturer:
Zetex Semiconductors
File Size:
79.06 KB
Description:
P-channel enhancement mode vertical dmos fet.
* 200 Volt VDS

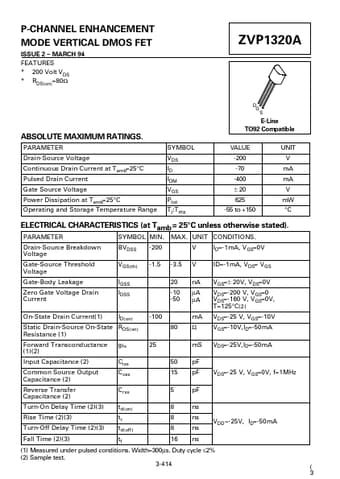

* RDS(on)=80Ω ZVP1320A D G S ABSOLUTE MAXIMUM RATINGS. PARAMETER Drain-Source Voltage Continuous Drain Current at Tamb=25°C Pulsed Drain Current Gate Source Voltage Power Dissipation at Tamb=25°C Operating and Storage Temperature Range SYMBOL VDS ID IDM VGS Ptot Tj:Tstg E
ZVP1320A
Zetex Semiconductors
79.06 KB
P-channel enhancement mode vertical dmos fet.
📁 Related Datasheet
ZVP1320F - 200V P-CHANNEL MOSFET
(Diodes)
A Product Line of Diodes Incorporated
ZVP1320F
200V P-CHANNEL ENHANCEMENT MODE VERTICAL DMOS FET IN SOT23
Features and Benefits
• V(BR)DSS > -200V •.
ZVP1320F - P-Channel MOSFET
(Zetex Semiconductors)
SOT23 P-CHANNEL ENHANCEMENT MODE VERTICAL DMOS FET
ISSUE 3 JANUARY 1996 FEATURES * VDS - 200V 7
ZVP1320F
D S
PARTMARKING DETAIL -
MT
G
ABSOLUTE.
ZVP1320FQ - P-CHANNEL MOSFET
(DIODES)
ZVP1320FQ
P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
BVDSS -200V
RDS(ON) Max 80Ω @ VGS = -10V
ID Max -65mA
Description and Applications
Th.
ZVP1320FTA - P-Channel 200V MOSFET
(VBsemi)
ZVP1320FTA-VB
ZVP1320FTA-VB Datasheet P-Channel 200V (D-S)MOSFET
.VBsemi.
PRODUCT SUMMARY
VDS (V) - 200
RDS(on) ( ) 0.8 at VGS = - 10 V 0.9.
