ZXMN2F30FHTA

20V SOT23 N-channel MOSFET

ZXMN2F30FHTA Features

* low onresistance achievable with low (2.5V) gate drive. Features

* Low on-resistance

* 2.5V gate drive capability

* SOT23 package Applications

* Buck/Boost DC-DC Converters

* Load switching and SMPS

* Charging applications in portable equipment

ZXMN2F30FHTA Datasheet (362.61 KB)

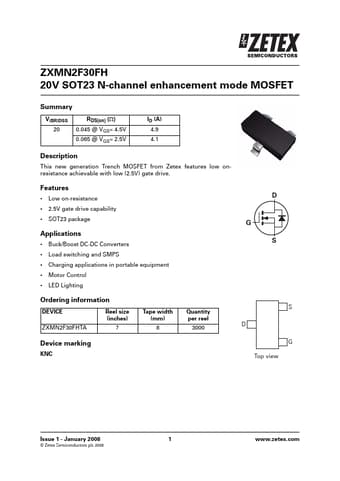

Preview of ZXMN2F30FHTA PDF

Datasheet Details

Part number:

ZXMN2F30FHTA

Manufacturer:

Zetex Semiconductors

File Size:

362.61 KB

Description:

20v sot23 n-channel mosfet.
ZXMN2F30FH 20V SOT23 N-channel enhancement mode MOSFET Summary V(BR)DSS 20 RDS(on) (Ω) 0.045 @ VGS= 4.5V 0.065 @ VGS= 2.5V ID (A) 4.9 4.1 Descrip.
