AZ576 - POWER RELAY

AZ576 Description

AZ576 20A MINIATURE POWER RELAY .

AZ576 Features

* Class F standard
* Dielectric strength 5000Vrms
* Low cost
* Epoxy sealed versions available
* 20 Amp switching
* UL E44211
* TUV 50333135 CONTACTS Arrangement SPST (1 Form A) SPDT (1 Form C) Ratings Resistive load: Max. switched power:

📥 Download Datasheet

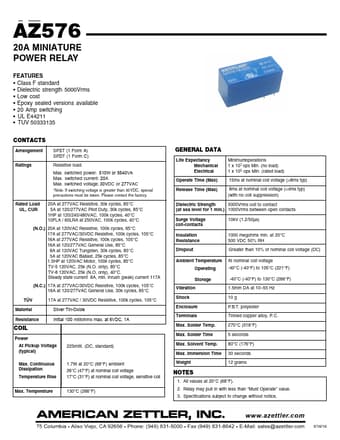

Preview of AZ576 PDF
datasheet Preview Page 2

Datasheet Details

Part number
AZ576
Manufacturer
Zettler
File Size
1.11 MB
Datasheet
AZ576-Zettler.pdf
Description
POWER RELAY
