MBR20200CP - 20.0A SCHOTTKY BARRIER DIODE

This page provides the datasheet information for the MBR20200CP, a member of the MBR2040CP 20.0A SCHOTTKY BARRIER DIODE family.

Datasheet Summary

Features

  • ! Schottky Barrier Chip ! Ideally Suited for Automatic Assembly ! Low Power Loss, High Efficiency ! For Use in Low Voltage.

📥 Download Datasheet

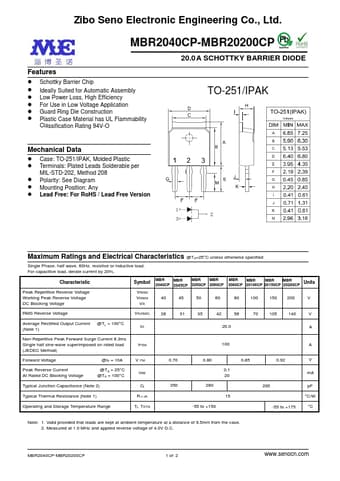

Datasheet preview – MBR20200CP

Datasheet Details

Part number MBR20200CP
Manufacturer Zibo Seno
File Size 94.68 KB
Description 20.0A SCHOTTKY BARRIER DIODE
Datasheet download datasheet MBR20200CP Datasheet
Additional preview pages of the MBR20200CP datasheet.

📁 Similar Datasheet

  • MBR20200C - SCHOTTKY BARRIER RECTIFIER (UTC)
  • MBR20200C - HIGH VOLTAGE POWER SCHOTTKY RECTIFIER (Diodes)
  • MBR20200C - HIGH VOLTAGE POWER SCHOTTKY RECTIFIER (BCD)
  • MBR20200CA - 20.0 Ampere Dual Common Anode Schottky Barrier Rectifiers (Thinki Semiconductor)
  • MBR20200CD - Schottky Diode (Yangzhou Yangjie)
  • MBR20200CD - Schottky Barrier Rectifiers (Eris)
  • MBR20200CG - Power Schottky Rectifier (SIRECT)
  • MBR20200CK - SCHOTTKY BARRIER RECTIFIER (MOSPEC)
  • MBR20200CR - Power Schottky Rectifier (SIRECT)
  • MBR20200CS - SCHOTTKY BARRIER RECTIFIER (MOSPEC)
Other Datasheets by Zibo Seno

Full PDF Text Transcription

Click to expand full text
Z ibo Seno Electronic Engineering Co., Ltd. MBR2040CP-MBR20200CP 20.0A SCHOTTKY BARRIER DIODE Features ! Schottky Barrier Chip ! Ideally Suited for Automatic Assembly ! Low Power Loss, High Efficiency ! For Use in Low Voltage Application ! Guard Ring Die Construction ! Plastic Case Material has UL Flammability C lassification Rating 94V-O  TO-251/IPAK Mechanical Data ! Case: TO-251/IPAK, Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: See Diagram ! Mounting Position: Any ! Lead Free: For RoHS / Lead Free Version Maximum Ratings and Electrical Characteristics @TA=25°C unless otherwise specified Single Phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
