ZT3001

Synchronous Boost DC/DC Converter

ZT3001 Features

* High efficiency up to 96%

* 0.6V to 5V input voltage

* 2.5V to 6V output voltage

* Low start-up voltage: 0.9V

* Low switch on (internal switch) resistance: 0.35Ω

* 1.4MHz fixed frequency switching

* 6-lead SOT-23 package

* RoHS Compliant and 100% Lead (Pb) Free APP

ZT3001 General Description

The ZT3001 is a high efficiency, synchronous, 1.4MHz fixed frequency, PWM step-up DC/DC converter. It works with input voltage from 0.6V to 5V. The output voltage is from 2.5V to 6V. The internal synchronous switch is used in ZT3001 to provide high efficiency without the use of Schottky diode. For 3.

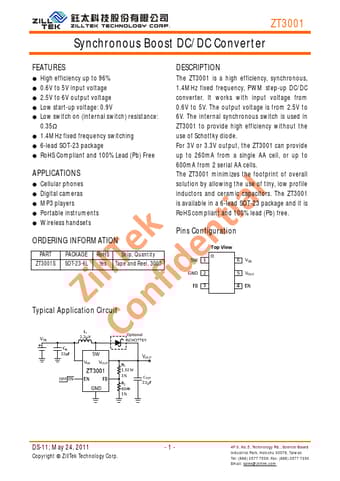

ZT3001 Datasheet (608.35 KB)

Preview of ZT3001 PDF

Datasheet Details

Part number:

ZT3001

Manufacturer:

ZillTek

File Size:

608.35 KB

Description:

Synchronous boost dc/dc converter.
