ZT310E, Low Power 5V 250kbps RS232 Transceivers

Zywyn Corporation Zywyn ZT202E/232E/310E/312E ZT202E, ZT232E ZT310E, ZT312E Low Power 5V 250kbps RS232 Transceivers .
The ZT232E series devices are +5V powered EIA/TIA-232 and CCITT V.

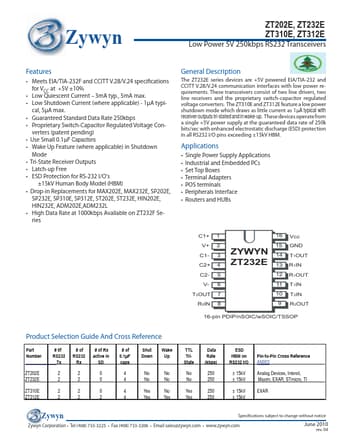

datasheet Preview Page 1 from Datasheet4u.com

ZT310E-Zywyn.pdf

ZT310E Datasheet Preview — Preview of ZT310E PDF

Datasheet Details

Part number:

ZT310E

Manufacturer:

Zywyn

File Size:

1.28 MB

Description:

Low Power 5V 250kbps RS232 Transceivers

Features

* Meets EIA/TIA-232F and CCITT V.28/V.24 specifications for VCC at +5V ±10%
* Low Quiescent Current
* 3mA typ. , 5mA max.
* Low Shutdown Current (where applicable) - 1μA typi- cal, 5μA max.
* Guaranteed Standard Data Rate 250kbps
* Proprietary Switch-Ca

Applications

* Single Power Supply Applications
* Industrial and Embedded PCs
* Set Top Boxes
* Terminal Adapters
* POS terminals
* Peripherals Interface
* Routers and HUBs C1+ 1 V+ 2 C1- 3 C2+ 4 C2- 5 V- 6 T2OUT 7 R2IN 8 16 Vcc 15 GND ZYWYN 14 T1OUT ZT23
