Z86L71 - IR/Low-Voltage Microcontroller

Z86L71 Description

PRELIMINARY PRODUCT SPECIFICATION 1 Z86L70/71/75/C71 IR/LOW-VOLTAGE MICROCONTROLLER .
The Z86L7X family of IR (Infrared)/Low-Voltage Microcontrollers are ROM/ROMless-based members of the Z8® MCU single-chip family with 237/125 bytes of.

Z86L71 Features

* Part Z86L70 Z86L71 Z86L75 Z86C71 ROM (KB) 2 8 4 8 RAM
* (Bytes) 125 237 237 237 I/O 14 16 14 16 Voltage Ranges 2.0V to 3.9V 2.0V to 3.9V 2.0V to 3.9V 4.5V to 5.5V
* s s s s 1 One Programmable 16-Bit Counter/Timer with One Capture Register Programmable Input Glitch Filter for P

Z86L71 Applications

* There are three basic address spaces available to support a wide range of configurations: Program Memory, Register File, and Expanded Register File. The register file is composed of 256/144 bytes of RAM. It includes four I/O port registers, 15 control and status registers and the rest are General-P

📥 Download Datasheet

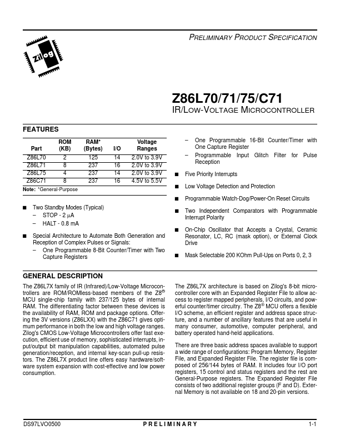

Preview of Z86L71 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
Z86L71
Manufacturer
Zilog.
File Size
349.71 KB
Datasheet
Z86L71_ZilogInc..pdf
Description
IR/Low-Voltage Microcontroller
