Z86L7208PSC - IR MICROCONTROLLER

Z86L7208PSC Description

PRODUCT SPECIFICATION 1 Z86C72/C92/L72/L92 IR MICROCONTROLLER .
The Z86LX2/CX2 family of IR (Infrared) are ROM/ROMless-based members of the Z8® MCU single-chip microcontroller family with 768 bytes of internal RAM.

Z86L7208PSC Features

* Part Z86C72 Z86C92 Z86L72 Z86L92 ROM (KB) 16 0 16 0 RAM
* (Bytes) 748 748 748 748
* I/O 31 31 31 31 Voltage Range 4.5V to 5.5V 4.5V to 5.5V 2.0V to 3.9V 2.0V to 3.9V s 1 Programmable Input Glitch Filter for Pulse Reception Five Priority Interrupts
* Three External
* Two

Z86L7208PSC Applications

* Many applications demand powerful I/O capabilities. The Z86LX2/CX2 family fulfills this with three package options in which the L72 version provides 31 pins of dedicated input and output. These lines are grouped into four ports. Each port consists of eight lines (Port 3 has seven lines) and is conf

📥 Download Datasheet

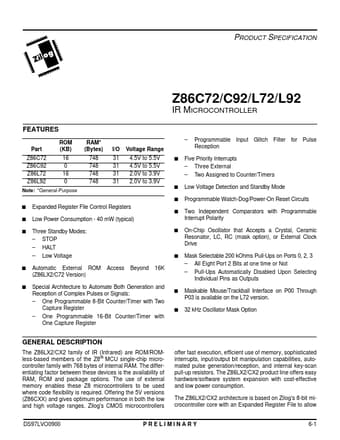

Preview of Z86L7208PSC PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
Z86L7208PSC
Manufacturer
Zilog.
File Size
364.11 KB
Datasheet
Z86L7208PSC_ZilogInc..pdf
Description
IR MICROCONTROLLER
