Z89176 Datasheet - Zilog.

Z89176 - Voice Processing Controllers

The Z89175/176 is a fully integrated, dual processor controller designed for voice processing applications.

The I/O control processor is a Z8® with 24 KB of program memory, two 8-bit counter/timers, and up to 47 I/O pins.

The DSP is a 16-bit processor with a 24-bit ALU and accumulator, 512x16 bits o

Z89176 Features

* Device Z89175 Z89176 ROM (KB) 24 RAM

* (Bytes) 256 256 I/O Lines 47 31 Voltage Range 4.5V to 5.5V 4.5V to 5.5V s s s s s s s s s s s s s 1 2 Clock Speeds of 20.48 or 29.49 MHz 16-Bit Digital Signal Processor (DSP) 8K Word DSP Program ROM 512 Words On-Chip DSP RAM 8-Bit A/D Converter with up to

Z89176_ZilogInc..pdf

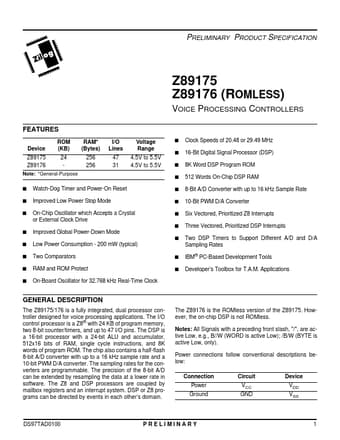

Preview of Z89176 PDF
Z89176 Datasheet Preview Page 2 Z89176 Datasheet Preview Page 3

Datasheet Details

Part number:

Z89176

Manufacturer:

Zilog.

File Size:

446.02 KB

Description:

Voice processing controllers.
