1N5820 SCHOTTKY BARRIER RECTIFIER

Zowie Technology Corporation

1N5820 Description

1N5820 THRU 1N5822 SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 40 Volts Forward Current - 3.0 Amperes DO-201AD 0.220(5.6) 0.190(4.8) DIA..

1N5820 Features

* Compliance to RoHS product
* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
* Metal silicon junction, majority carrier conduction
* Guardring for overvoltage protection
* Low power loss, high efficiency
* High current capability, low f

1N5820 Applications

* High temperature soldering guaranteed : 260oC / 10 seconds, 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension MECHANICAL DATA 0.375(9.5) 0.285(7.2) 1.0(25.4) MIN. 0.052(1.3) 0.048(1.2) DIA.
* Dimensions in inches and (millimeters) Case : JEDEC DO-201AD Molded plastic body Terminals : Ti

📥 Download Datasheet

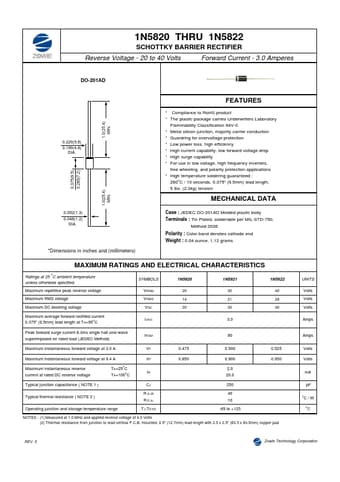

1N5820 Datasheet Preview — Preview of 1N5820 PDF

Datasheet Details

Part number: 1N5820
Manufacturer: Zowie Technology Corporation
File Size: 41.51 KB
Datasheet: 1N5820-ZowieTechnologyCorporation.pdf
Description: SCHOTTKY BARRIER RECTIFIER
