AS8222 - Enhanced FlexRay Standard Transceiver

AS8222 Description

AS8222 Enhanced FlexRay Standard Transceiver 1 General .
The AS8222 is a high-speed fault tolerant device operating as interface between a generic FlexRay Communication Controller and the copper wiring.

AS8222 Features

* Data transfer up to 10 Mbps
* Compliant with FlexRay Electrical Physical Layer Specification V2.1 Rev. B
* Wide operating ambient temperature range -40°C to +150°C
* Excellent EMC performance
* High common mode range insures excellent EMI immunity
* Interface with optional

AS8222 Applications

* The AS8222 FlexRay Standard Transceiver is best fitting for automotive FlexRay nodes where bus wake-up and voltage regulator control for voltage supplies is needed. The device addresses all ECUs connected to the permanent battery supply (terminal 30). The device is best suited for high temperature a

📥 Download Datasheet

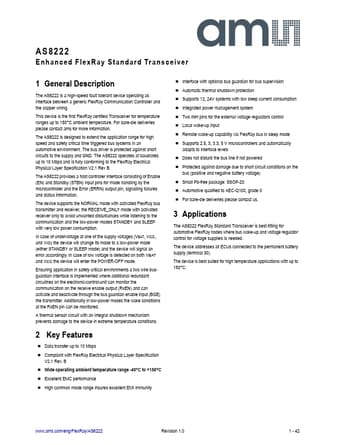

Preview of AS8222 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AS8222
Manufacturer
ams
File Size
921.26 KB
Datasheet
AS8222-ams.pdf
Description
Enhanced FlexRay Standard Transceiver
