AP6092 TELECOMMUNICATIONS TRANSFORMERS

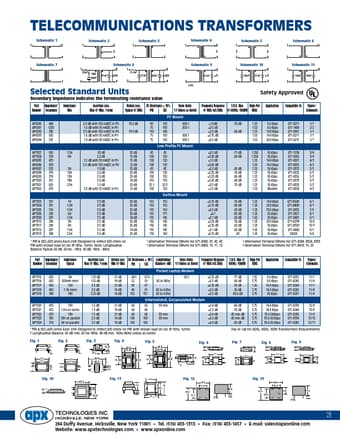

TELECOMMUNICATIONS TRANSFORMERS Schematic 1 16 34 Schematic 2 16 5 34 Schematic 3 14 23 Schematic 4 16 5 34 Schematic 5 1 2 3 6 5 4 Schematic 6 16 34 Schematic 7 29 47 1 33uF 3 680 68nF 47nF Schematic 8 61 8.2uF 820 43 27nF 33nF 6 560 4 Selected Standard Units Secondary impedance indicates the terminating resistance value Schematic 9 1 8.2uF 3 (Line) 6 5 4 Schematic 10 1 20uF 27uF 3 6 5 4 Schematic 11 16 10uF 15uF 34 Safety Approved Part Impedence Inductance Number S.

AP6090-apx.pdf

AP6092 Datasheet Preview — This datasheet PDF includes multiple part numbers: AP6092, AP6090. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AP6092, AP6090

Manufacturer:

apx

File Size:

73.25 KB

Description:

Telecommunications transformers.

Note:

This datasheet PDF includes multiple part numbers: AP6092, AP6090.
Please refer to the document for exact specifications by model.
