AS3802

CDMA/FM RECEIVE AGC AMPLIFIER AS3802

austriamicrosystems AG

AS3802 Features

* r r r r r r r r Supports dual mode operation. -50 to +50db gain control guaranteed. Single 3.6V supply. Temperature and supply stabilized. Power down feature. 80MHz to 250MHz operation. Silicon BiCMOS process. Miniature surface mount 16 pin, 150 mil SSOP package. General Description The AS3802 is a

AS3802 General Description

The AS3802 is a gain controlled amplifier designed for the receive section of dual mode CDMA/FDM, TDMA/FDM or FM/FDM cellular phones. Key specifications like gain range noise figure, IP3, temperature range and other specifications are designed to be in line with the IS-95 Standard for CDMA cellular .

AS3802 Datasheet (91.46 KB)

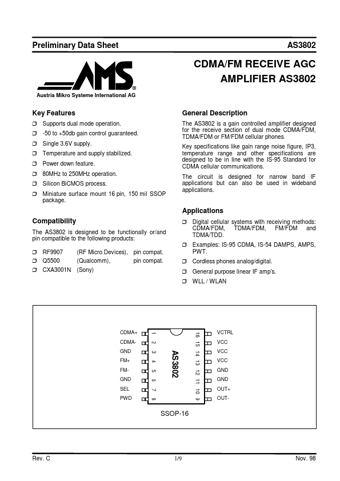

AS3802 Datasheet Preview — Preview of AS3802 PDF

Datasheet Details

Part number:

AS3802

Manufacturer:

austriamicrosystems AG

File Size:

91.46 KB

Description:

Cdma/fm receive agc amplifier as3802.
