AS3833 Datasheet - austriamicrosystems

6 channel high-precision LED controller

AS3833 Features

* include under-voltage and thermal shutdown as well as open and short LED detection. 2 Key Features 6 channel LED controller Step-up controller optimized for 2D/3D mode Supply voltage range: 12V to 50V Output current up to 250mA per channel Absolute current accuracy +/- 0.8% Channel to channel accur

AS3833 General Description

The AS3833 is a 6 channel high precision LED controller with PWM input for driving external bipolar transistors in LCD-backlight panels, optimized for 2D and 3D operation. The integrated step-up controller provides the necessary output voltage for the LED string supply. The SMPS feedback control opt.

AS3833 Datasheet (1.52 MB)

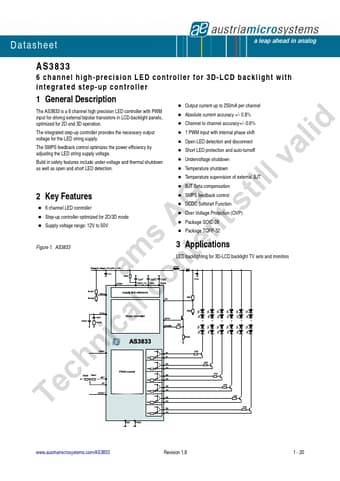

AS3833 Datasheet Preview — Preview of AS3833 PDF

Datasheet Details

Part number:

AS3833

Manufacturer:

austriamicrosystems

File Size:

1.52 MB

Description:

6 channel high-precision led controller.
Technical coantmesntAsGtill valid Datasheet AS3833 6 channel high-precision LED controller for 3D-LCD backlight with integrated step-up controller .
