AS3810 - 16 Channel White LED Driver

Product Overview

Dialog Semiconductor

Datasheet Details

Part number	AS3810
Manufacturer	Dialog Semiconductor
File Size	724.73 KB
Description	16 Channel White LED Driver
Datasheet	AS3810 Datasheet

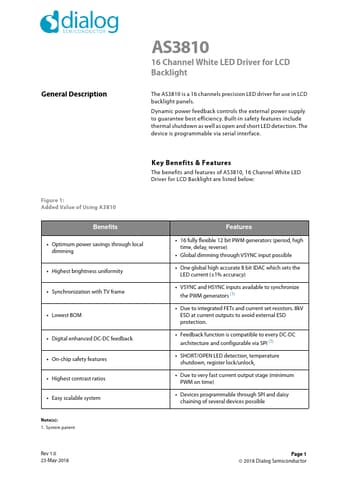

Additional preview pages of the AS3810 datasheet.

Product details

Description

AS3810 16 Channel White LED Driver for LCD Backlight The AS3810 is a 16 channels precision LED driver for use in LCD backlight panels.Dynamic power feedback controls the external power supply to guarantee best efficiency.Built-in safety

Features

include thermal shutdown as well as open and short LED detection. The device is programmable via serial interface. Key Benefits & Features The benefits and features of AS3810, 16 Channel White LED Driver for LCD Backlight are listed below: Figure 1: Added Value of Using A3810 Benefits.
Optimum power savings through local dimming.
Highest brightness uniformity.
Synchronization with TV frame.
Lowest BOM.
Digital enhanced DC-DC feedback.
On-ch.
