BM1411

High efficiency 2A Step-Down Converter

BM1411 Features

*  2A Output Current  Up to 92% Efficiency  4.75V to 23V Input Range 20µA Shutdown Supply Current 380kHz Switching Frequency  Adjustable Output Voltage from 1.22V to 0.85

* VIN Cycle-by-Cycle Current Limit Protection Thermal Shutdown Protection  Frequency Fold Back at Short Circuit Stabili

BM1411 General Description

The BM1411 is a current-mode step-down DC-DC converter that generates up to 2A output current at 380kHz switching frequency. The device utilizes advanced BCD process for operation with input voltage up to 23V consuming only 20µA in shutdown mode, the BM1411 is highly efficient with peak efficiency a.

BM1411 Datasheet (421.54 KB)

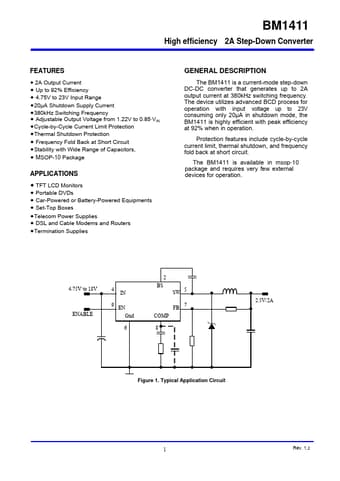

Preview of BM1411 PDF

Datasheet Details

Part number:

BM1411

Manufacturer:

bookly

File Size:

421.54 KB

Description:

High efficiency 2a step-down converter.
