BM1430

3.0A Step-Down Converter

BM1430 Features

*  3A Output Current  Efficiency up to nearly 90% @+5V /3A output  +3.85V to +23V Input Range 55µA Shutdown Supply Current 380kHz Switching Frequency  Adjustable Output Voltage from 1.22V to 0.85

* VIN Cycle-by-Cycle Current Limit Protection Thermal Shutdown Protection  Frequency Fold Back

BM1430 General Description

The BM1430 is a current-mode step-down DC-DC converter that generates up to 3A output current at 380kHz switching frequency. The device utilizes advanced BCD process for operation with input voltage up to +23V consuming only 55µA in shutdown mode, the BM1430 is highly efficient with peak efficiency.

BM1430 Datasheet (802.38 KB)

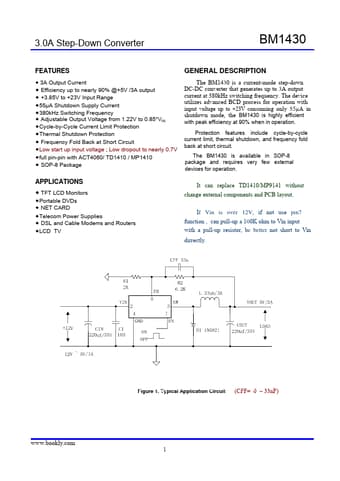

Preview of BM1430 PDF

Datasheet Details

Part number:

BM1430

Manufacturer:

bookly

File Size:

802.38 KB

Description:

3.0a step-down converter.
