CM8601 3 Watt Audio Power Amplifier

CM8601 Description

CM8601 3 Watt Audio Power Amplifier with Selectable Shutdown Logic Level General .
The CM8601 is an audio power amplifier primarily designed for demanding applications in mobile phones and other por-table communication device applic.

CM8601 Features

* a low-power consumption shutdown mode. To facilitate this, Shutdown may be enabled by either logic high or low depending on mode selection. Driving the shutdown mode pin either high or low enables the shutdown pin to be driven in a likewise manner to enable shutdown. The CM8601 contains advanced pop

CM8601 Applications

* in mobile phones and other por-table communication device applications. It is capable of delivering 1.25 watts of continuous average power to an 8 BTL load and 2 watts of continuous average power (LD and MH only) to a 4ΩBTL load with less than 1% distortion (THD+N+N) from a 5VDC power supply. Boomer

📥 Download Datasheet

Preview of CM8601 PDF

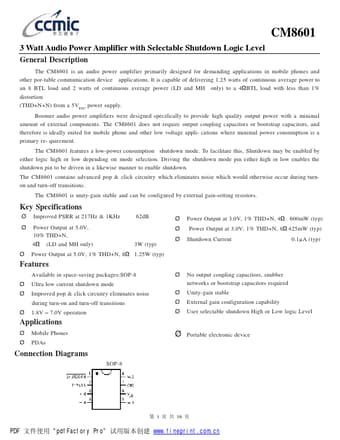

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CM8601
Manufacturer
ccmic
File Size
859.17 KB
Datasheet
CM8601-ccmic.pdf
Description
3 Watt Audio Power Amplifier
